LME Tube
Accessible laser technology
Power up to
15 kW
work area MAX
6000×2000 mm
The flexible laser system for cutting flat surfaces and tubes

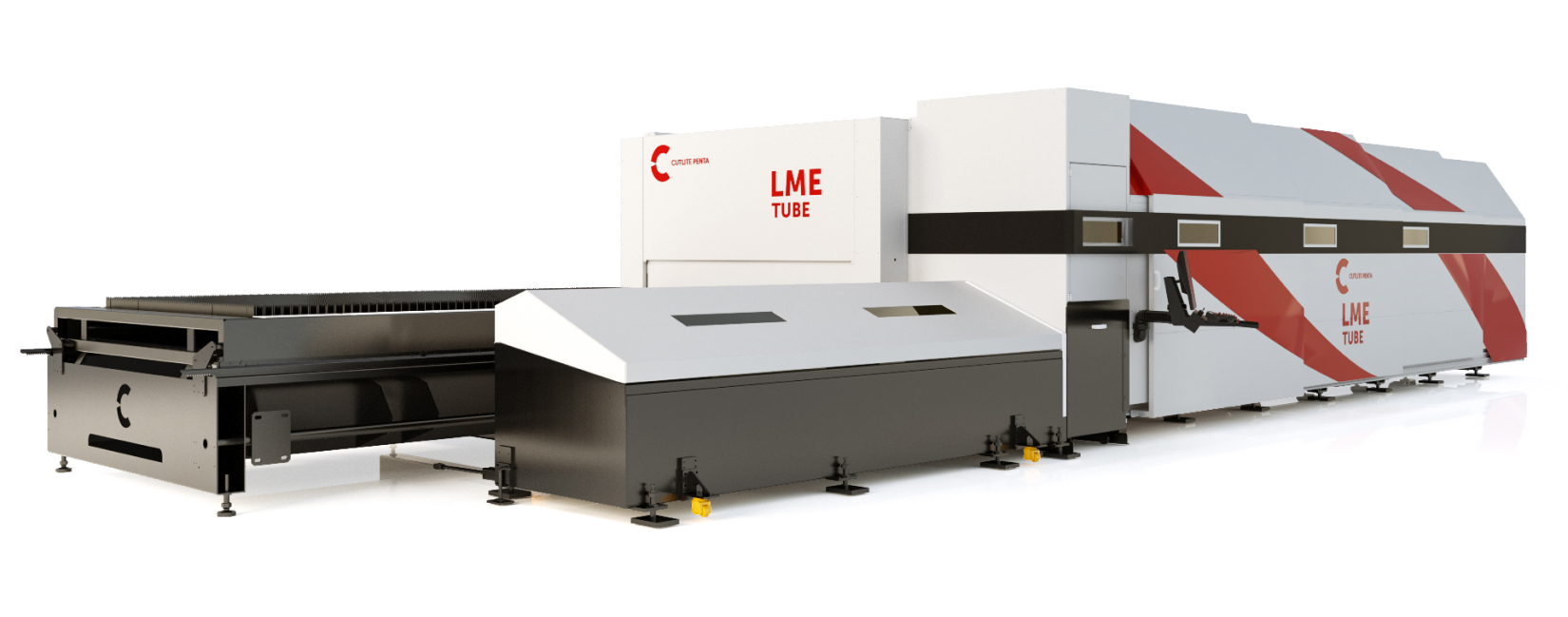

LME TUBE combines the advantages of an LME system for the cutting of flat sheet metal with the new laser technology applied to cutting tubular elements for the new FIBER TUBE, which make it an actual machine for the processing of tubular elements.
The transition from flat to tubular machining takes place automatically and the cutting process uses the same EVO 3 cutting head, designed and developed internally by Cutlite Penta, and also provides for the possibility of Bevel cutting on the tube. LME TUBE represents the best quality-price choice on the market and guarantees superior flexibility of use with high cutting performance, while maintaining a high quality standard.
CONFIGURATOR
EVO 3 Head
The EVO3 cutting head is equipped with a capacitive sensor. The LME TUBE use the EVO3 autofocus cutting head, entirely designed by our research and development department and built using cutting edge precision mechanics from Cutlite Penta; the head is equipped with a contactless capacitive sensor.
Bevel Head
The head designed by Cutlite Penta allows performing these operations without penalizing the classic flat cut.
The mechanically innovative head is very small, lightweight and allows rotating by +/- 45° in both cutting directions.
Laser sources
Fiber laser sources provide extensive versatility and make it possible to cut a multiplicity of metal types. Developed as a single system, it can be paired with a wide variety of optical fiber diameters. High efficiency, excellent beam quality and low power consumption are all hallmarks of the source. The source is housed in a NEMA 12 cabinet which is conditioned and sealed so that it can operate even in the harshest of environments. The high degree of reliability of these sources also ensures particularly low maintenance costs.
Automatic step
LOADER
The LME TUBE system can be equipped with the loading and unloading system for tubes.
Maximum capacity 6 tubes having a ø 305 mm diameter or maximum side 220 mm
Automatic loading of tubes from ø 20mm - up to ø 305 mm
Automatic loading lengths from 1500 mm to 6500 mm, which can be increased on request
Sliding surfaces entirely covered in plastic material to avoid damaging and scratching delicate tubes
Possibility of mounting on the operator or rear side
Loading/unloading and Warehouses
Cutlite Penta also produces in-house in-line or 90° loading and unloading systems combined with vertical storage warehouses that communicate directly with our laser systems.
Automatic nozzle change (optional)
Automatic nozzle replacement is an option whereby the machine automatically changes the cutting head nozzle with no need for operator involvement.
Camera
It is a position camera that allows remote controlling and viewing of the machine work.
Bench change on two levels
The bench change on two levels allows the work bench to be replaced in approximately 15 seconds, almost completely reducing the loading and unloading times.
Automation
The various automation options allow optimisation of the work phases, significantly reducing the loading and unloading times.
Tube size detection (optional)
Tube size detection optical sensor.
Software
Simple and intuitive cutting-edge front-end software, designed to guarantee the highest level of versatility and customisation. Laser cutting has never been so easy.
Our systems are compatible with the main tube CAD/Cam software on the market.
Smart Manager 6
The exclusively in-house designed control software has been evolving in line with market and customer demands for many years. Smart Manager 6 has been
specifically developed to fully exploit the potential of state-of-the-art cutting systems and ensure that all Cutlite Penta products achieve top performances.
Smart Composer
The new and revolutionary software by Cutlite Penta interfaces directly with the numerical control of the machine and with the front-end smart manager software.
Samples
Technical informations
| LME TUBE MODEL | WORK AREA |
| 3015 | 3000 x 1500 mm |
| 4015 | 4000 x 1500 mm |
| 4020 | 4000 x 2000 mm |
| 6020 | 6000 x 2000 mm |
| 6025 | 6000 x 2500 mm |
| Round format | Rectangular format | Tube wall thickness |
| min. 20 mm max. 220 mm Ø | min. 20 mm max. 160 mm | 8 mm |
| Round format | Rectangular format | Tube wall thickness |
| min. 20 mm max. 220 mm Ø | min. 20 mm max. 160 mm | 8 mm |
| LASER POWER |
| 1.000 W |
| 2.000 W |
| 3.000 W |
| 4.000 W |
| 6.000 W |
| 8.000 W |
| 10.000 W |
| 12.000 W |
| 15.000 W |
| Z AXIS |
| 200 mm |
