The precision of a laser cutting machine starts from the frame

When people talk about laser cutting machines, the focus often falls on speed, dynamics, automation, and final cut quality. All fundamental elements, of course. But the real performance of a laser system is born much earlier, from what makes every precise movement and every stable job possible: the frame.

For Cutlite Penta, the frame is not just a load-bearing structure. It is the technical base from which the entire quality of the machine takes shape: the first element that determines precision, reliability, and production continuity.

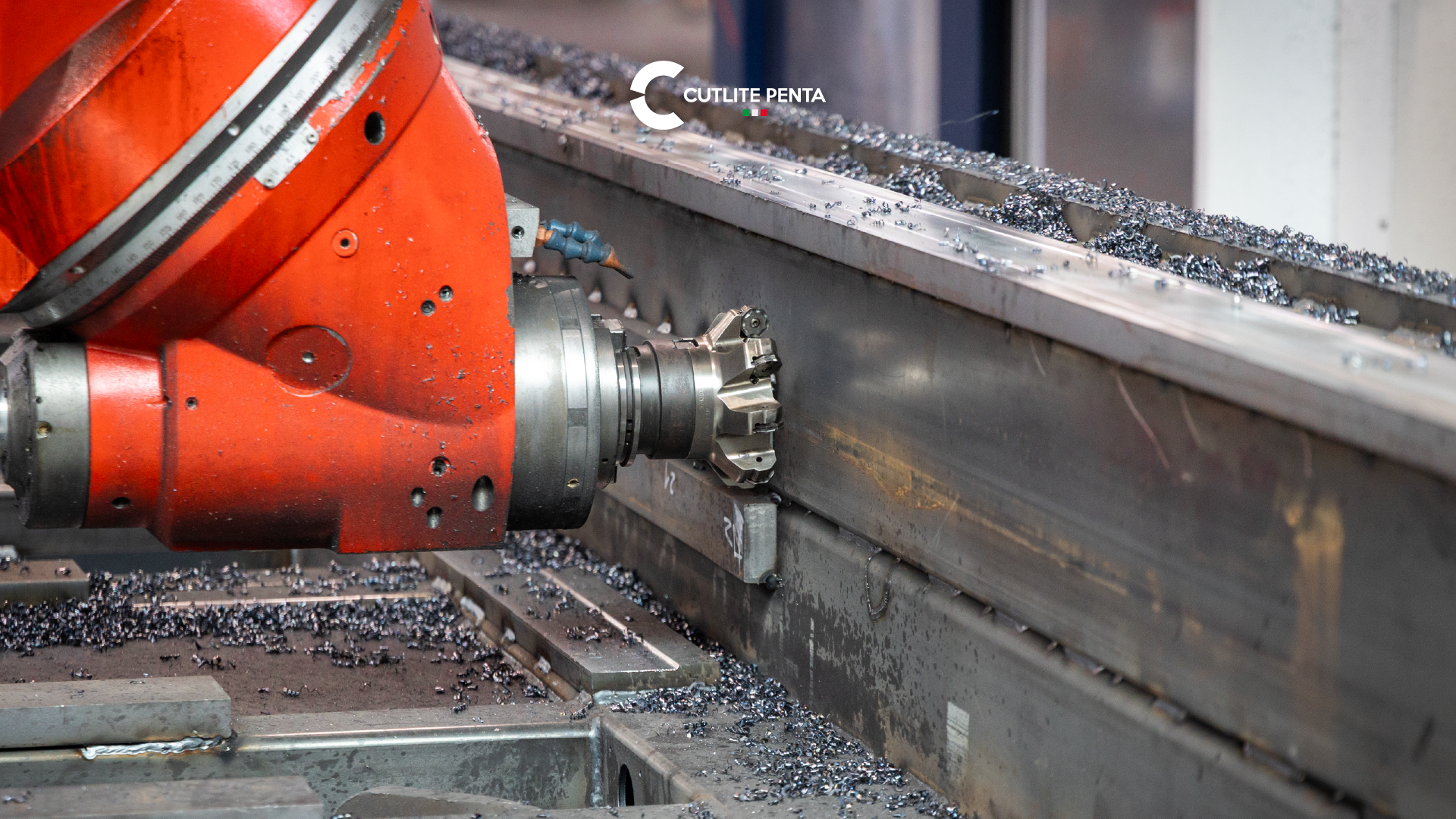

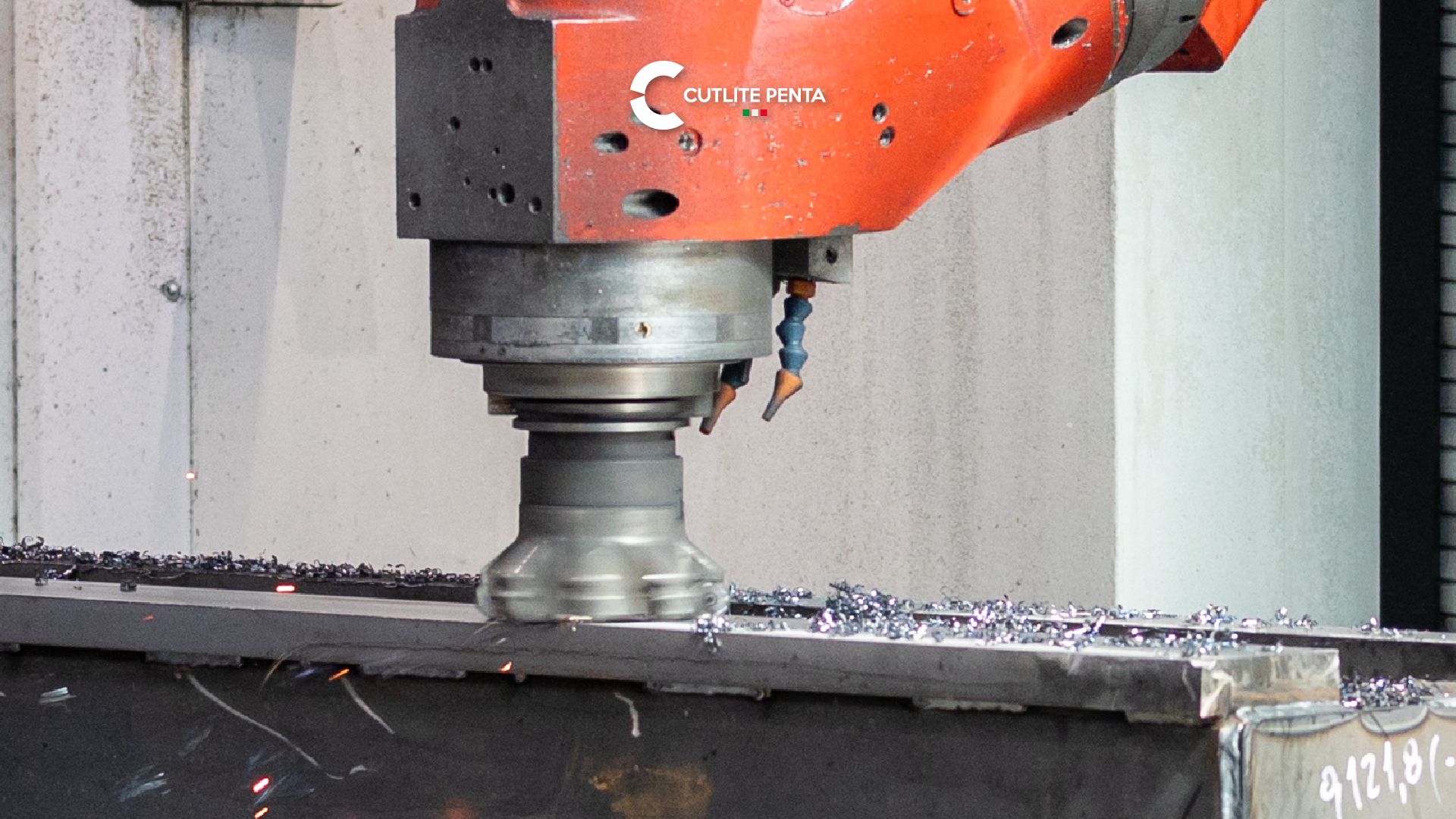

In the video we tell the story of the production process of a frame for our linear-motor PLUS. The crucial moment is the machining of the two beds, right and left, which must house the magnets for the linear motors: this phase requires precision within a tenth of a millimeter, an extremely demanding value to achieve, especially on machines several meters long.

Why frame precision matters so much

In a fiber laser cutting machine, precision does not depend only on electronics or software. It also depends, decisively, on the mechanical quality of the structure. If the frame is not made with extremely controlled tolerances, the whole system loses part of its potential. A structure designed and machined with precision makes it possible to:

• guarantee the correct alignment of the components
• support the linear motors stably
• maintain consistent performance over time
• contribute to the final cut quality
• reduce the risk of errors and discontinuity in production

In other words, the frame is the point where the machine's theoretical precision starts becoming real precision.

The difficulty grows on large machines

Achieving one-tenth precision is already a major challenge. Maintaining it on large structures is even more so: on machines several meters long, every operation requires experience, mechanical expertise, and absolute control of the production process.

It is precisely in this capability that the value of advanced manufacturing is recognized: not just building, but building while maintaining high standards even on complex geometries and large dimensions.

This is why the frame is one of the most significant moments of the entire production. That is where the conditions are set for the machine to deliver high performance, fast movements, and consistent cutting results.

The frame is the starting point, but not the only decisive element

At Cutlite Penta the frame is the base of the product, but the performance of a laser machine comes from the integration of several components of high technological complexity.

Among them, Cutlite Penta's Evo cutting head, mounted on systems such as the FHD, is one of the most important: it is the component that contributes directly to machining quality, process precision, and the machine's ability to deliver efficient, clean, reliable cuts.

It is exactly the balance between a mechanical base built with extreme accuracy and advanced components like the cutting head that completes the machine's value. On one side, the structure ensuring stability and precision; on the other, the technologies that turn this base into cut quality, performance, and productivity.

Made in Italy, or rather Made in Tuscany

All of this also tells another essential aspect of Cutlite Penta's identity: direct control of production.

Because this is where our mechanical culture, our manufacturing experience, and our idea of quality take shape. Making such important components in-house means overseeing the most strategic phases of the product, protecting know-how, and guaranteeing a build standard consistent with the expectations of those looking for a high-performance laser machine.

In this sense, the frame is much more than a technical component. It is the concrete symbol of how a Cutlite Penta machine is born: from a solid, precise base designed to last. We also told its story in a dedicated article on the machine frame.

Where the quality of a laser machine is really born

The quality of a laser machine is not born from a single element. It comes from a chain of technical, constructive, and design choices that must work together. The frame is the beginning of this path; the cutting head and the other high-tech components complete its potential.

The video shows exactly this: the moment when precision starts taking shape. Not in the finished cut, but much earlier. In the structure. In the tolerances. In the ability to build a machine that is truly reliable, precise, and ready to deliver high performance over time.

Frequently asked questions

Why is the frame so important in a laser cutting machine?

Because it is the mechanical base on which component alignment, linear motor stability, and performance consistency over time depend. If the frame is not machined with controlled tolerances, the whole system loses part of its potential: theoretical precision never becomes real precision.

What does “one-tenth precision” on the frame mean?

It means that the machining of the two beds, right and left, where the magnets of the linear motors are housed, must respect tolerances in the order of a tenth of a millimeter. A very demanding value, especially on structures several meters long.

Is the frame alone enough to guarantee cut quality?

No. It is the starting point: performance comes from the integration between the mechanical base and highly complex components such as the Evo cutting head, developed in-house by Cutlite Penta and capable of handling power up to 60 kW.

What does Made in Tuscany mean for Cutlite Penta?

Direct control of production: the most strategic components, such as the frame, are made in-house. This makes it possible to oversee the decisive phases of the product, protect know-how, and guarantee a consistent build standard on every machine.
