Large-format laser cutting: an 18-meter frame within four tenths of a millimeter
An 18-meter frame with four tenths of a millimeter between the two sides: that is how precision stays in place when the machine gets big.
Machines for large-format laser cutting keep growing to follow customer demand, and the bigger the machine, the harder it is to hold precision. We designed and built in-house the frame of an 18-meter linear motor system: the difference between the two sides housing the linear motors is four tenths of a millimeter. Here is why that figure matters.

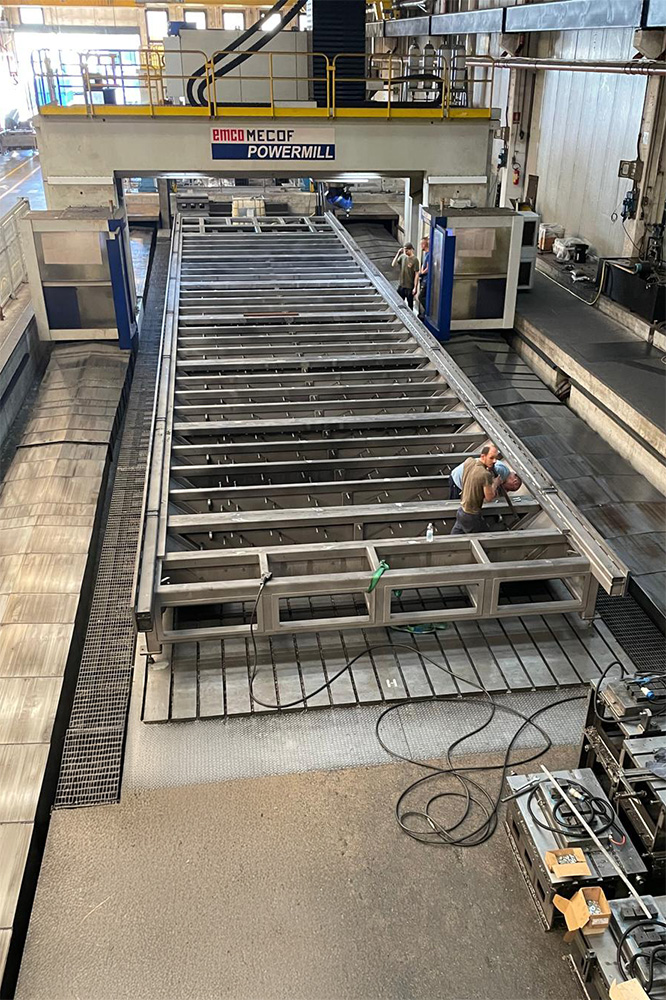

An 18-meter frame, milled within four tenths of a millimeter

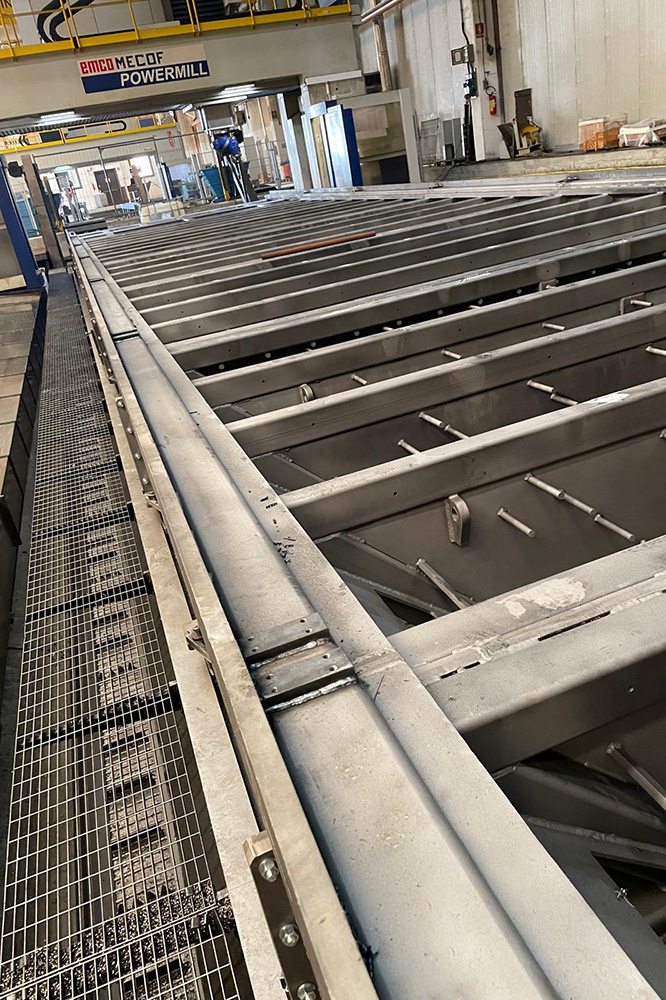

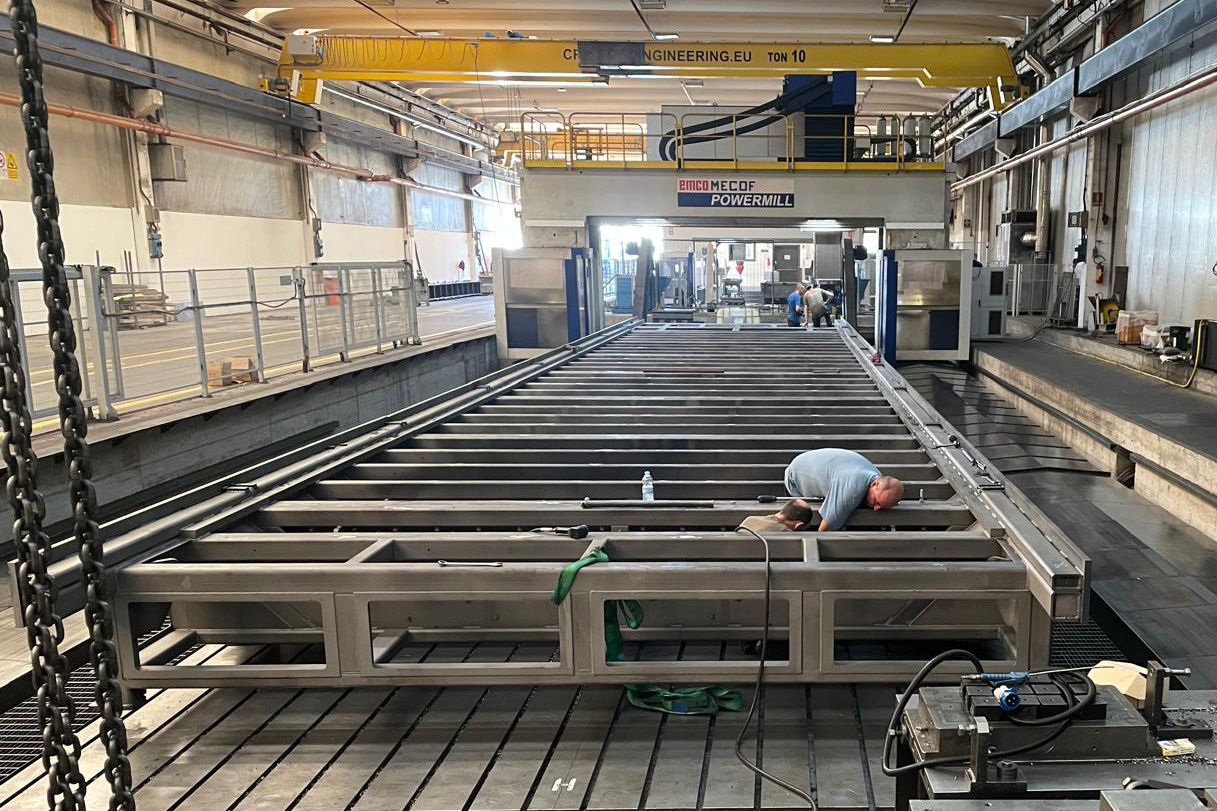

Designing and building an 18-meter frame is a significant technical step, but the challenge is not the size: it is holding precision over the full length. The difference between the sides housing the linear motors is just four tenths of a millimeter, achieved with an industrial milling machine working across the full 18-meter travel.
At this scale, that figure is what makes the difference: it allows large formats to be cut without giving up quality, on jobs that stay out of reach for smaller machines.
Why the frame is the core of precision
In a metal cutting machine the frame is not just a load-bearing structure: it determines the quality of the result. The precision it is built to affects stability, service life and machining accuracy. Holding four tenths of a millimeter over 18 meters delivers three very concrete things:
- Machine stability: tolerances this tight over the full length give the linear motors a precise seat and keep vibration and oscillation away.
- Smooth motion: the symmetry of the sides lets the linear motors run without friction, holding a stable cutting path even at high speeds.
- Clean cuts: the quality of the frame shows directly on the part, with no defects or distortion.
What changes for companies working on large formats
A large linear motor laser system is above all for companies working large-format plate, in heavy fabrication for example, where precision and stability are not negotiable. The concrete benefits:
- Consistent cut quality even on large formats, because the stability of the system keeps imperfections to a minimum.
- Greater production efficiency: with smooth, stable motion the machine runs at higher speeds without losing quality.
- More applications: cutting large formats at this precision widens the range of jobs you can take on.
- Designed and built in-house, in Italy: quality control is direct across the whole chain and the machine is tailored to the needs of the people who will run it.
Made in Italy, from design to finished machine
This project is one step in a longer path: raising the level of Made in Italy laser cutting technology. Designing and building in-house means we can tailor the technology and control quality across the whole chain, even when the request is out of the ordinary.
Working at this size while holding this precision shows something simple: growing in format does not mean giving up quality.
Frequently asked questions
How long is the Cutlite Penta laser machine frame?
The frame built for a large-format linear motor laser system is 18 meters long, designed and built in-house.
What tolerance does an 18-meter frame hold?
The difference between the two sides housing the linear motors is four tenths of a millimeter (0.4 mm) over 18 meters of length, achieved by milling on an industrial milling machine.
Why does the frame matter for laser cutting precision?
Because it is the base everything else moves on: a frame milled to tight tolerances gives the linear motors a precise seat, reduces vibration and oscillation and keeps the cutting path stable, even at high speeds.
Who needs a large-format laser machine?
Above all companies working large plate, in heavy fabrication for example, where precise, stable cuts are needed on large-format parts.
